|Material:||Stainless Steel 304 / 316||Application:||Submersible Ultrasonic Transducers|
|Option:||Ultrasonic Cleaning||Industry:||Treating Dairy Slurry Water|
|Ultrasonic Power:||1800W||Frequency:||28 / 40 / 80KHZ|
submersible ultrasonic cleaner,
immersible ultrasonic cleaner

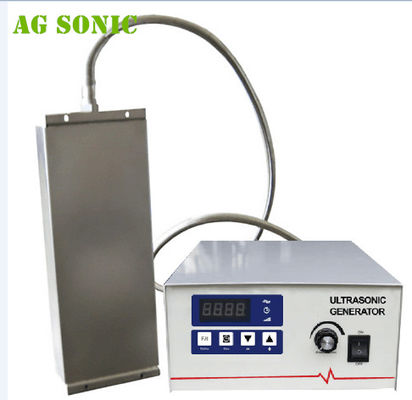

High Power Submersible Transducer Pack Waterproof Immersible Transducer
High Power 600W To 1800W Submersible Transducer Pack Waterproof Immersible Transducer
Our immersible transducer is custom designed for your particular application and tank size. It can be incorporated into existing tanks of any size and converted it into ultrasonic tank. It is controlled by our unique Pulse Swept Pleasecontact us for specific information on how we can create one for your Immersible Transducer needs.
The range of immersible transducers come in various sizes ultrasonic powers and operating frequencies. We can select the size you need based upon your cleaning requirements and tank size. The immersible ultrasonic transducer systems are portable and can be moved from one tank to another if required. They are most suited to when you have already a tank installed in your production process or we can supply the complete system including the tank.
Immersible ultrasonic transducers are designed for use in new or existing cleaning tanks to improve the speed and effectiveness of rinsing cleaning and other processes. Single or multi- module units can be custom designed for tanks of any size.
Since submersible ultrasonic boxes are most commonly added to existing stainless steel and other metallic based tanks, the boxes and ultrasonic power are made to fit such tanks. We can easily make our immersible ultrasonics into any tank configuration sizing required for your application with little to no additional custom size pricing.
Brief Introduction of the immersible ultrasonic transducers:
Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems.
The number and placement of the submersible Transducer Pack
Immersible transducer Types:
Bottom Monunted -over Top Junction Box
Bottom Mounted with dual Bulkhead
Bottom Mounted With single Bulkhead
Bottom Mounted With Over The Top Pipe
Side Mounted With Over the Top Pipe
Side Mounted With Bulkhead Thru Side Wall
Mounting may be either wall or bottom mounted, depending on the application. The units are shipped fully assembled and require only simple insertion into the tank prior to operation.
|Model||Material||Transducers||Estimated volume||Box size||Cable
|Ultrasonic frequency||Ultrasonic power|
Enhance the cleaning power of your existing tank with AGSONIC Submersible Ultrasonic Cleaning Systems
For customers who would like to improve the cleaning power of their existing tank by installing an ultrasonic cleaning device, AGSONIC's submersible system may be the most economical and efficient choice on the market.
However, before buying a submersible system, please consider the tank you already have and its material of construction.
Ultrasonic transducer elements sealed in a liquid-tight housing are an option to transducer elements permanently bonded to the side or bottom of a cleaning tank. The major benefits of immersible ultrasonic transducers are that they are easy to service and can be added to existing equipment, often without extensive tank modifications. Ultrasonics unique technology is offered in the immersible transducer format. This includes standard individual frequencies from 28 kHz to 120 kHz as well as multiple frequencies in a single or multiple units.
Understanding Ultrasonic Power
When an ultrasonic cleaner is running electrical power is consumed evenly but it is released in intervals to create the sound waves that shape the ultrasonic signal. Some manufacturers report ultrasonic peak power, others report average power, and some report both.
When comparing equipment you must compare based on the same criterion otherwise you’d be comparing apples with oranges.
While more power usually indicates faster and more effective cleaning, more power is not always better.
Too much power can damage electronic parts, the surface finish on a soft metal (e.g. aluminum), and other delicate items.
For cleaning extremely sensitive items, adjustable power is a useful feature.
Keep in mind that the larger the volume of solution, the more ultrasonic power will be needed for cleaning.
Most cleaners run at an average power of 50 to 100 watts per gallon, so the larger the tank the more power you need.Don’t attempt to increase the effective power of an ultrasonic cleaner by under-filling the tank.
Ultrasonic cleaner generators that power transducers are tuned to a particular fill level.
Operating the unit with less fluid can damage the generator and will result in less than optimized cleaning.
